The DriveSpin® DSH electric actuators are characterized by the short axial length and by the possibility to use a through hole for routing cables, pipes, and drive shafts. Fully sealed compact actuators equipped with zero-backlash reduction gears have high power density and large hole inner diameter, from 8 to 40mm. Excellent positioning accuracy and positioning repeatability. DSH maintain radial-axial and torque load capacity and are known for high overload capacity of reduction gear and AC servomotor, featuring high dynamics. The voltage and feedback variability will widely satisfy all customers requirements. This allows even demanding tasks such as exact positioning or fast movement of heavy loads, to be performed with a high degree of repetitive accuracy. Rated output torque is within 18 Nm - 420 Nm.

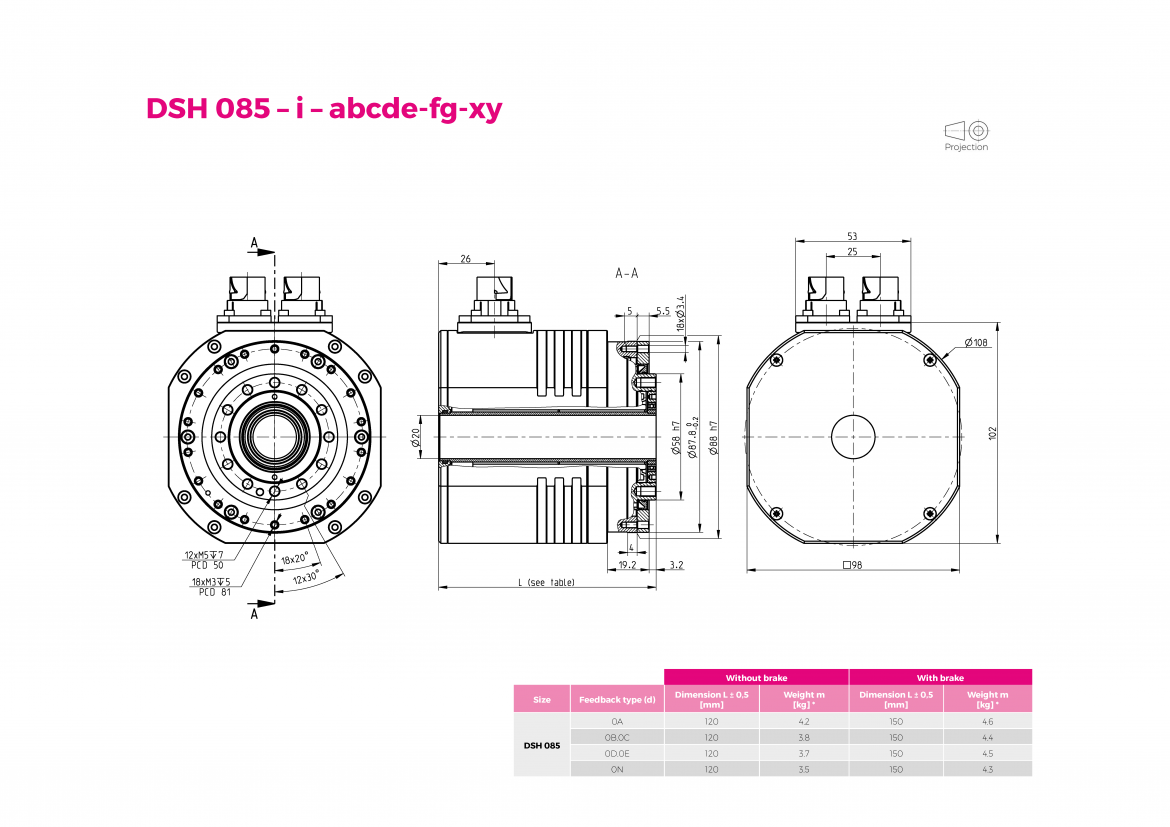

The Inline H-Series introduces the new DriveSpin®Hollowshaft "inline" series of rotary actuators. The high-precision DSH 085 actuators represent the medium-sized series representative of the DriveSpin®product line.
TECHNICAL PARAMETERS
Parameter | DSH 085 | |
Reduction ratio | i | 47, 85 |
Hollowshaft diameter | ø[mm] | 14 alebo 20 |
Rated output torque |
Tr [Nm] | 41 |
Acceleration/braking output torque |
Tmax [Nm] | 82 |
Rated input speed |
nr [rpm] | 2000 |
* for more information see DriveSpin® catalog
