TECHNICAL SPECIFICATIONS
Harmonic Solutions®
Ultimate Precision
Cone Drive’s harmonic gearing is zero to low backlash by design. It provides high transmission accuracy and can support a high ratio reduction in a single stage with low inertia. The highly accurate, torque dense design makes harmonic gears the perfect solution for ultimate precision motion control applications.
We manufacture a wide range of strain wave gearing options in our line of Cone Drive Harmonic Solutions®.
Key Features

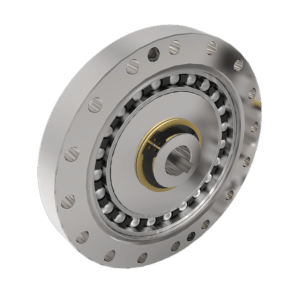

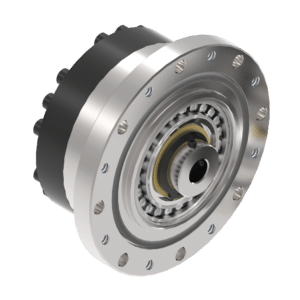

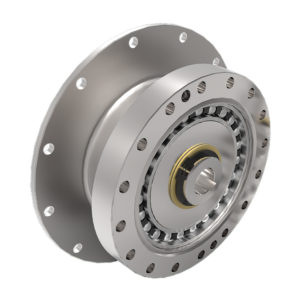

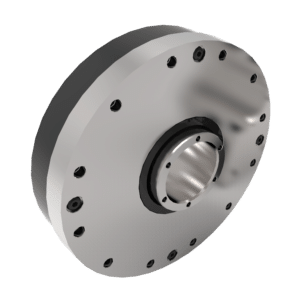

- Ring, Cup, and Hat Styles Available
- Component Sets and Gearheads
- Low to Zero Backlash
- High Transmission Accuracy
- Customizations Available Upon Request
- Manufactured and Assembled in Controlled Environment
- Competitive Lead Times
- 1 Year Warranty
HARMONIC GEARING SPECIFICATIONS
- Sizes: 11 thru 32
- Ratio: 50:1 thru 160:1
- Nominal Backlash: < 1 mRad
- Continuous Output Torque: < 172 Nm
- Peak Output Torque: < 824 Nm
- Standard Input Options: Keyed or set screws (including Oldman style coupling)
- Custom Input Options: Throughbore, solid input, dowel pins, tapped holes, piloted stepper/servo motor ready, special materials and coatings
- Configurations: Component gearset or gearhead, sealed, throughbore, lightweight, and other options available
.
Why Choose Cone Drive as Your Slew Drive and Slew Bearing Manufacturer
- We provide custom slew drive and slew bearing solutions
- We can provide on-site slew gearbox installation
- All of our slew drives and slew bearings come with dedicated engineering support
Upgrade Your Applications with Cone Drive Slewing Bearings
Cone Drive’s self-retaining bearings are designed to handle all axial and radial forces, including tilting moments. Designed as a single bearing unit, they are an excellent option for a wide range of industries.
Optimized Design for Enhanced Performance
At Cone Drive, we understand the importance of weight and performance optimization. That’s why our low-profile designs are engineered to be lightweight, without sacrificing performance.
Our slewing bearing’s large, open inner race diameter provides system design flexibility, allowing you to easily incorporate them into your current applications. Furthermore, our bearings can be seamlessly integrated into a slewing drive, taking advantage of Cone Drive’s extensive gearing expertise.
.
.
Harmonic Gearing FAQ's
- What motor shaft and mounting tolerances are recommended for installation?
- What are the maximum bore sizes allowed for Oldham/Solid inputs?
- What materials are used in your harmonic gearing?
- What is the maximum input speed?
- What are the ratings of the crossed roller output bearing on CBG/HBG series?
- How are the unit ratings defined?
- What are the weights of these units?
- What is the recommended lubrication for your harmonic gearboxes?
- Where are the SDS / Technical Data Sheet for Cone Drive lubrication?
- Where are Cone Drive Harmonic Solutions manufactured?
-
Traverse City, MI, USA
- How much does a gearhead or component set cost?
-
Please contact our Customer Service team with your selected style, size, ratio, and quantity.
1-888-994-2663 (toll free)
1-231-946-8410 (International)
- What is the lead time for a standard unit?
-
2 – 4 weeks
- What is the expected life for a standard unit?
-
The expected life for a standard unit varies by style, size, and ratio.
Please contact our Customer Service team for additional information.
1-888-994-2663 (toll free)
1-231-946-8410 (International)
- What is the lead time for parts to prototype with?
-
Standard parts could be as low as a 2-4 weeks. Custom features may change lead time.
- Can my gearset/gearbox be rebuilt or reconditioned?
-
Yes, please reach out to our Application Engineers for your specific needs.
PRODUCT DEVELOPMENT
The Cone Drive Product Development Laboratory is a state-of-the-art facility directly adjacent to our Traverse City, Michigan manufacturing location. The lab has the capacity to test a wide range of gear reducer products, for both Cone Drive products as well as those manufactured by other companies. The lab includes capability to run a wide variety of tests including load testing for evaluating reducer performance and operating efficiency.
TEST + CONTROL
- Six product testing stands
- Servo cyclic control
- Simulated inertial loading
- Constant torque/load
- Durability/validation
- Accelerated life test
- Lubricant evaluation
- Static loading & stiffness
PRODUCT MEASUREMENT
- Displacement & motion
- Torque
- Thermal
- Efficiency
- Vibration
- Basic noise
- Transmission accuracy
