The DriveSpin® DS electric rotary actuators, as the basic type of actuators, provide rotary motion and transfer output torque with high radial-axial load capacity, and are the most accurate and precise solution in their category. The DS actuators are characterized by high dynamics, high flexible drive solution, guaranteed by an AC servomotor, and high robustness and overload capacity of TwinSpin® reduction gear. DriveSpin® high variability of voltage, brake feedback and electrical connections will satisfly customer requirements in many cases. Rated output torque range of the DS is from 18 Nm to 460 Nm.

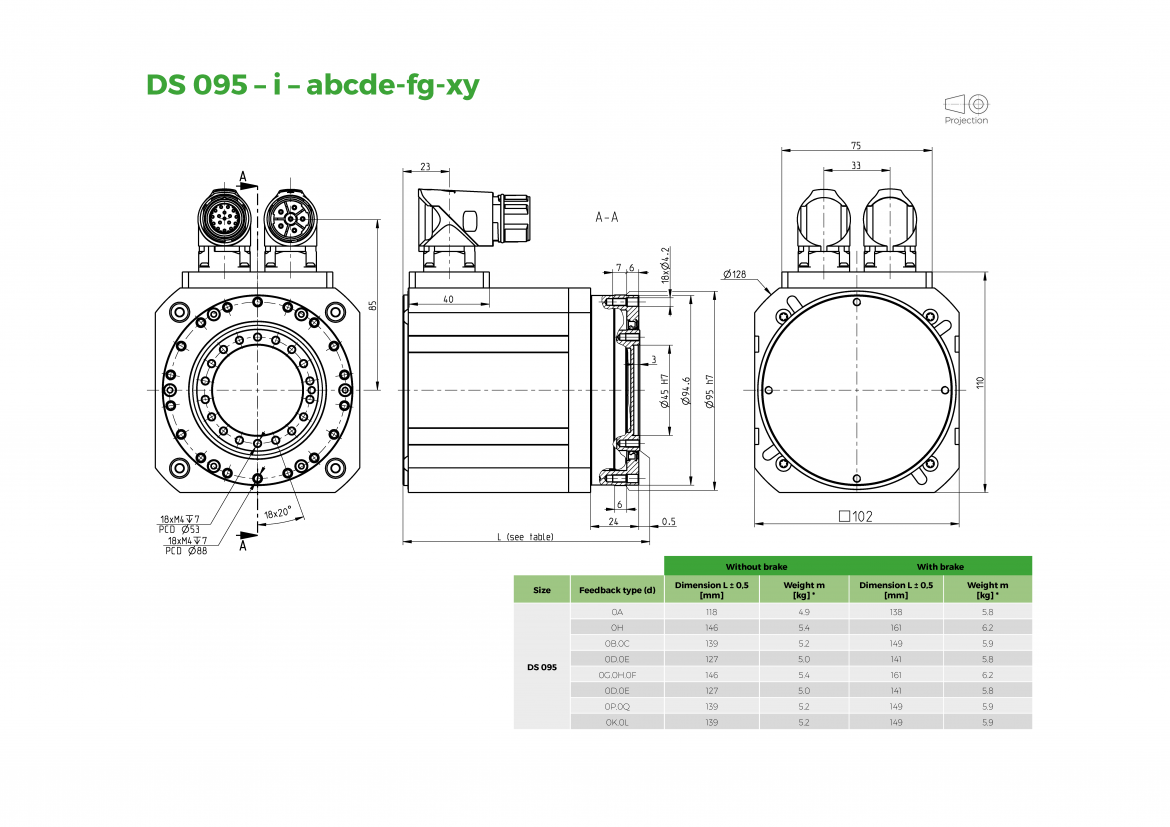

The high-precision DS 095 actuators are the medium-sized series drive of the DriveSpin® product line, meeting even the most demanding requirements of customers in all industries.
TECHNICAL PARAMETERS
Parametre | DS 095 | |
Reduction ratio | i | 73, 95 |
Rated output torque |
Tr [Nm] | 85 |
Acceleration/braking output torque |
Tmax [Nm] | 170 |
Rated input speed |
nr [rpm] | 2000 |
* for more information see DriveSpin® catalog
